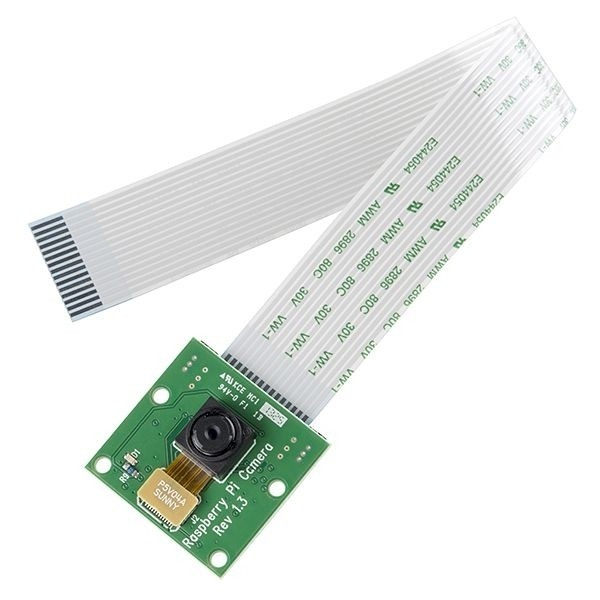

Raspberry Pi kameramoduuli 5.0 MP

Max kuvan resuluutio 2592 x 1944
Max videon resuluutio 1080p30, 720p60 ja 480p90
Sisältää englanninkieliset ohjeet kuinka asentaa kamera.
Farnell asennus-ohjeet
Farnell asennus-ohjeet »
Linkki valmistajan kotisivuille
Linkki valmistajan kotisivuille »



High definition camera module compatible with the Raspberry
Pi model A and model B. Provides high sensitivity, low crosstalk
and low noise image capture in an ultra small and lightweight
design. The camera module connects to the Raspberry
Pi board via the CSI connector designed specifically for
interfacing to cameras. The CSI bus is capable of extremely
high data rates, and it exclusively carries pixel data to the
BCM2835 processor.


RS Part Number 775-7731
Specifications
Image Sensor Omnivision 5647 CMOS image sensor in a fixed-focus module
with integral IR filter
Resolution 5-megapixel
Still picture resolution 2592 x 1944
Max image transfer rate 1080p: 30fps (encode and decode)
720p: 60fps
Connection to Raspberry Pi 15 Pin ribbon cable, to the dedicated 15-pin MIPI Camera Serial
Interface (CSI-2)
Image control functions Automatic exposure control
Automatic white balance
Automatic band filter
Automatic 50/60 Hz luminance detection
Automatic black level calibration
Temp range Operating: -30° to 70°
Stable image: 0° to 50°
Lens size 1/4”
Dimensions 20 x 25 x 10mm
Weight 3g
