Diagnostiikka Kortti

The Diagnostic Card


(Model: DC-0020)

•

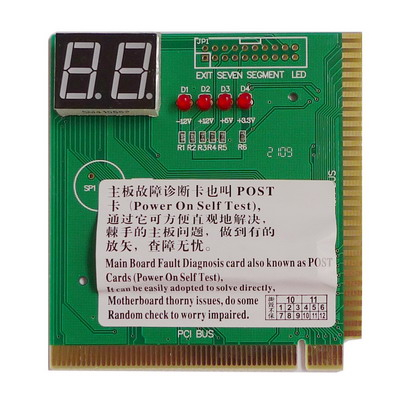

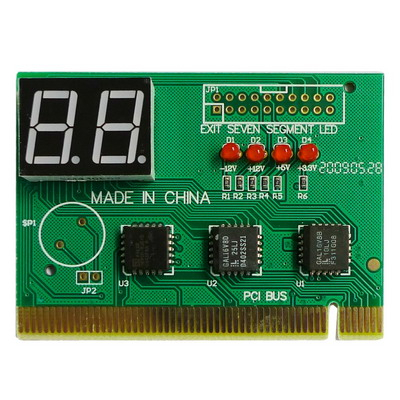

  PCI connector on a single card


• Is it the CMOS
  battery Or the memory? Or maybe the processor is broken? And how about the
  external cache? The Debug card will tell you instantly through a series of
  LEDs and a code number.


• Gives all
  information on errors of the motherboard, before even the VGA card is
  activated.


• NEW feature
  --- A external code display could be mounted on outside of computer case, when
  the diagnostic card is installed on PCI slot permanently.

Specification

• PCI bus are suitable


• Court defects
  by difference sounds coding with build-in speaker.


• It can
  diagnosis the motherboard signal which show the problem of CPU, Memory,
  display card and so on.


• Wrong plug or
  direction will be not affect the operation of PCI slot.


• It can display
  the halting execution automatic with a couple of times.


• LED displays
  shows diagnosis result of motherboard. Especially helpful to pinpoint where is
  the problem when power on the computer and find no display or machine hang.
  PCI bus reset and CLK signal working indicator.(When indicator LED is on to
  indicate its respective signal is fine.


• Support the
  power source working indicator -- +5V,+12V,+3.3V and 12V(When indicator LED is
  on to indicate its respective power is fine, otherwise to indicate its
  respective power is failure.)


• Fully
  compatible with any kind motherboards which has the PCI bus slot.



• Dual POST code

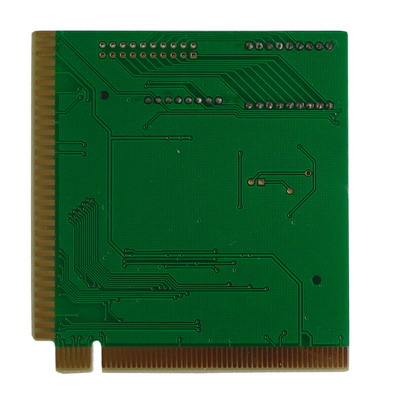

  display - User can readout the POST at PCB component and solder side. It is
  easy to view the POST code when user plug the POST card in computer system.
